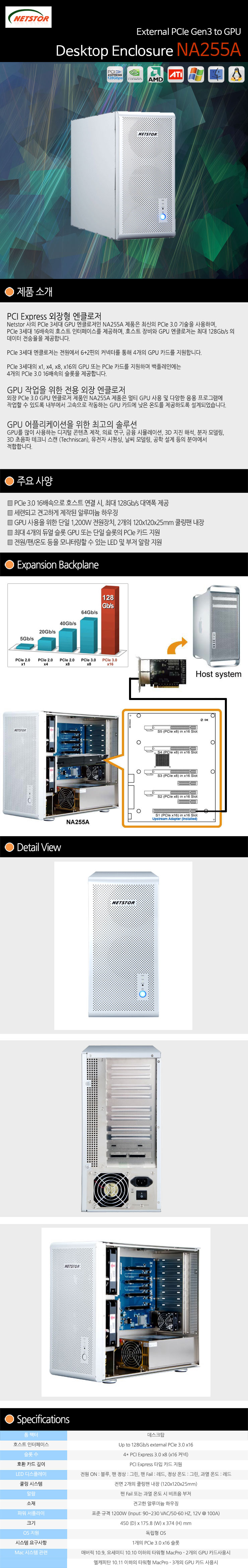

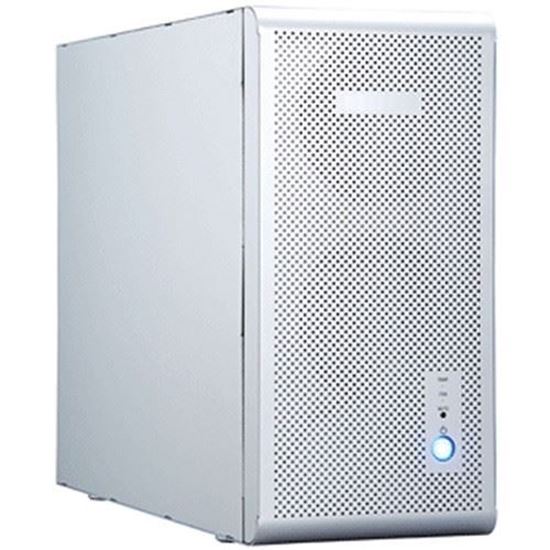

TurboBoxExternal PCIe Gen3 to GPU Desktop Enclosure NA255A


Model
 NA255A-XGPU
Form Factor
Desktop
Host Interface
Up to 128Gb/s external PCIe 3.0 x16
No. of Slot
4* PCI Express 3.0 x8 (x16 connector)
Card Length Available
Supports full length,full height PCI Express Cards
LED Display for Enclosure
Power-On LED - Blue
FAN normal - green; Fan failure - Red
TEMP normal - green; TEMP Over 55°C - red
Cooling
Front: two 120x120x25 mm cooling fans
75 CFM each fan @ full speed
Alarm
Buzzer beeping for fan failure or over temperature (over 55°C) occurs
Material
Solid metal structure with aluminum housing
Power Supply
Model : NA255A-XGPU
Universal Single 1200W (High-Efficiency & Low Noise)
Input: 90~230 VAC/50-60 HZ
12V @ 100A
(Note: 1300W peak power @ 12 seconds)
Dimension
450 (D) x 175.8 (W) x 374 (H) mm
17.7 (D) x 6.9 (W) x 14.7 (H) inch
O.S. support
OS Independent
Host Requirement
One PCIe 3.0 x16 slot and system has sufficient PCIe resources
Note:
1. The tower MacPro under 10.9 Mavericks and 10.10 Yosemite only supports up to 2 nVidia GPU cards.
2. Now the tower MacPro under 10.11 El Capitan is able to support up to 3 nVidia GPU cards again.
